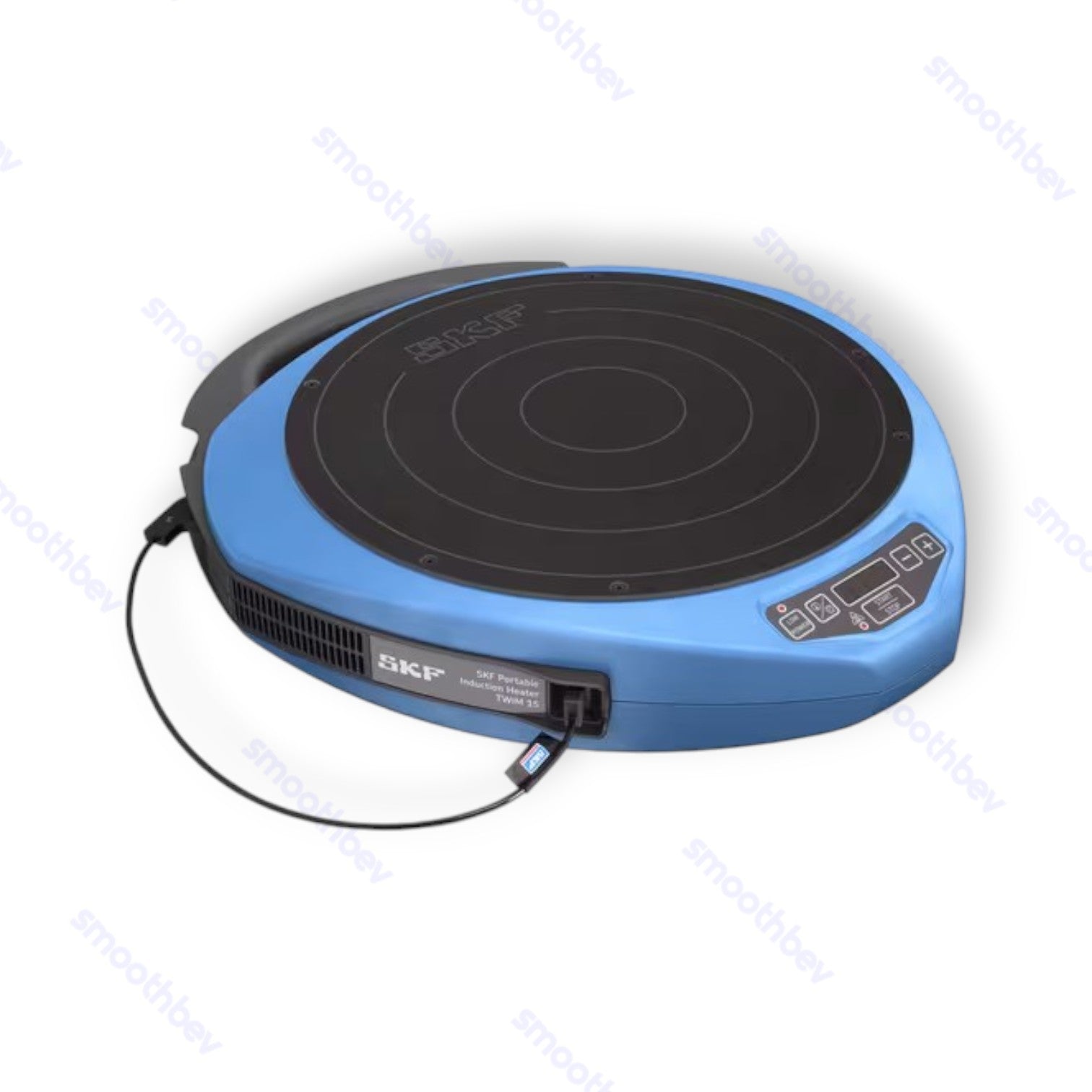

TWIM 15/230V Portable induction heater

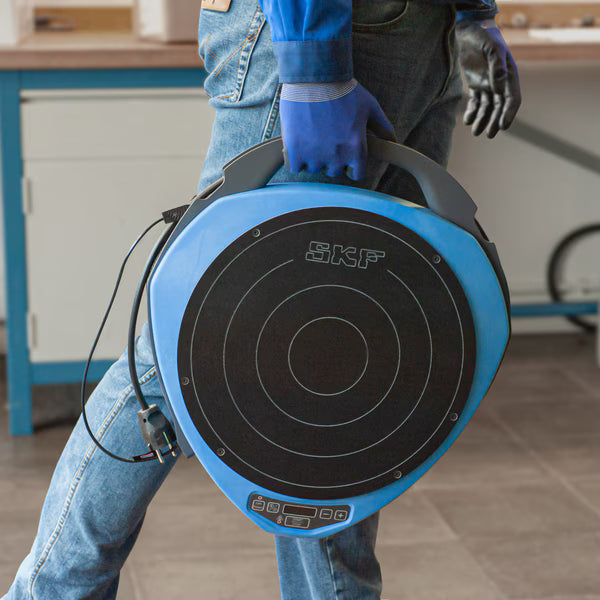

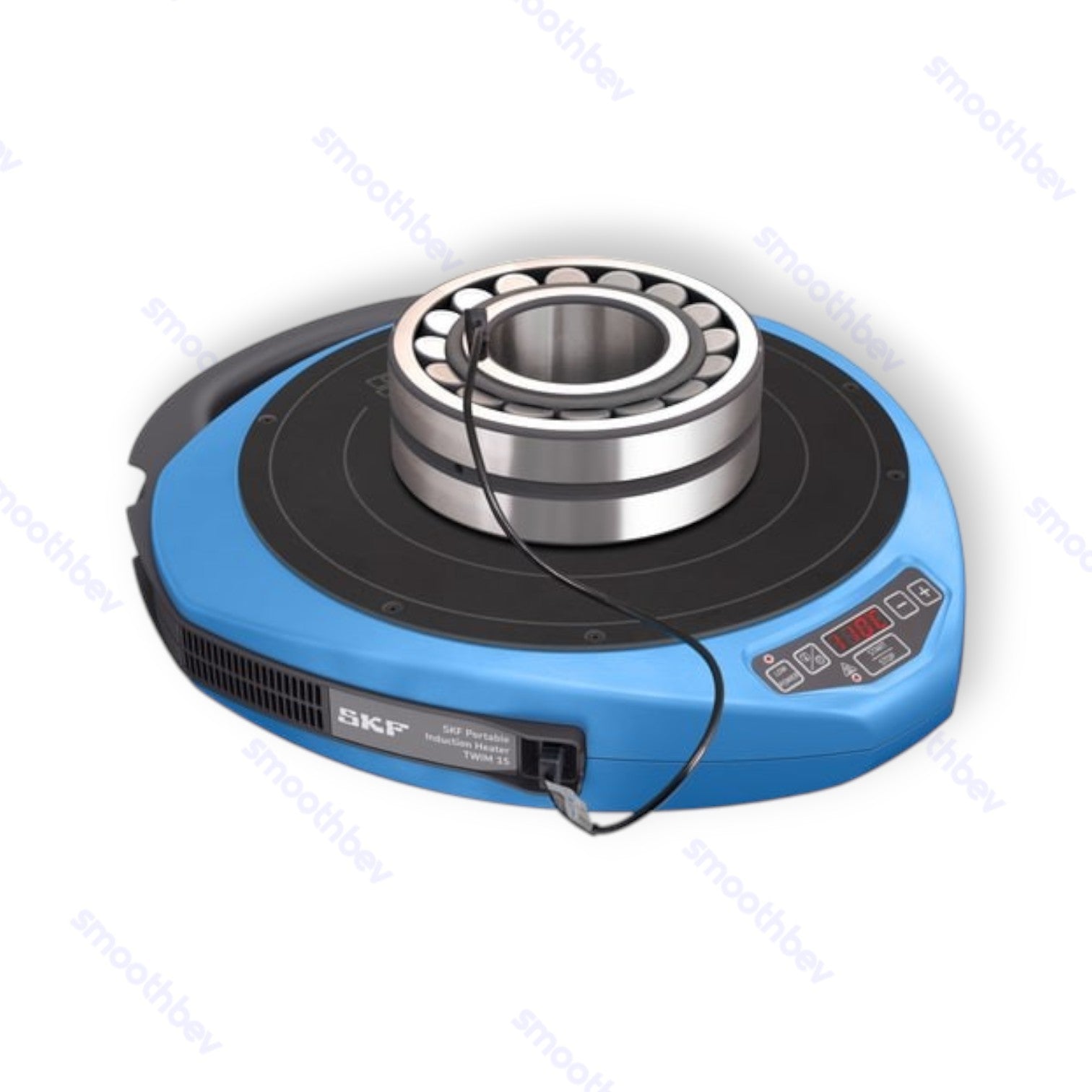

The TWIM 15 is a portable and robust induction heater that is designed for safe bearing heating for hot mounting. This compact heater is especially suitable for usage in the field, yet it is compact and versatile for usage on workbenches. The heater utilizes a smart construction and operating software to optimise the bearing heating safety and speed for bearings weighing up to 20 kg. The heater has different power modes to support heating of sensitive bearings (e.g. with reduced clearance) and non-bearing components.
- Portable, lightweight, compact and robust
- Smart and innovative bearing heating technology
- No support yokes required
- Automatic temperature control
- Detection of bearing size and automatic heating adjustment
| Recommended applications |
Fans and blowers
Compressors
Roller conveyors
Bearing houses
Gear boxes
Electrical motors
Pump installations
Engines
|
| Type | Induction heater, portable |
| Series | TWIM 15 |
| Heating method | Induction, medium frequency |
| Suitable for mounting | Yes |
| Suitable for dismounting | No |
| Solid workpiece weight (max, mounting) | 10 kg |
| Bearing weight (max) | 20 kg |
| Workpiece bore diameter (mounting) | 30 – 250 mm |
| Workpiece outer diameter | 42 – 320 mm |
| Power consumption (max) | 2 300 W |
| Workpiece width (max) | 85 mm |
| Voltage | 200-240 V |
| Voltage frequency | 50 / 60 Hz |
| Current (max) | 10 A |
| Temperature measurement | Magnetic probe K-type |
| Number of temperature sensors | 1 |
| Demagnetisation after heating | Yes |
| Error guiding codes | Yes |
| Heating temperature (max) | 200 °C |
| Thermal overload protection | Yes |
| Display | 7 segment LED display |
| Forced air cooling | Yes |
| Power setting |
10%
25%
50%
100%
|
| Thermometer mode | Yes |
| Time mode | Yes |
| Remote control panel (wired) | No |
| Heating time control | 5 – 1800 s |
| Heating time steps | 1 s |
| Heating temperature control | 40 – 200 °C |
| Heating temperature steps | 1 °C |
| Housing material | Glassfiber filled special PA |
| Colour |
Blue
Dark Grey
|

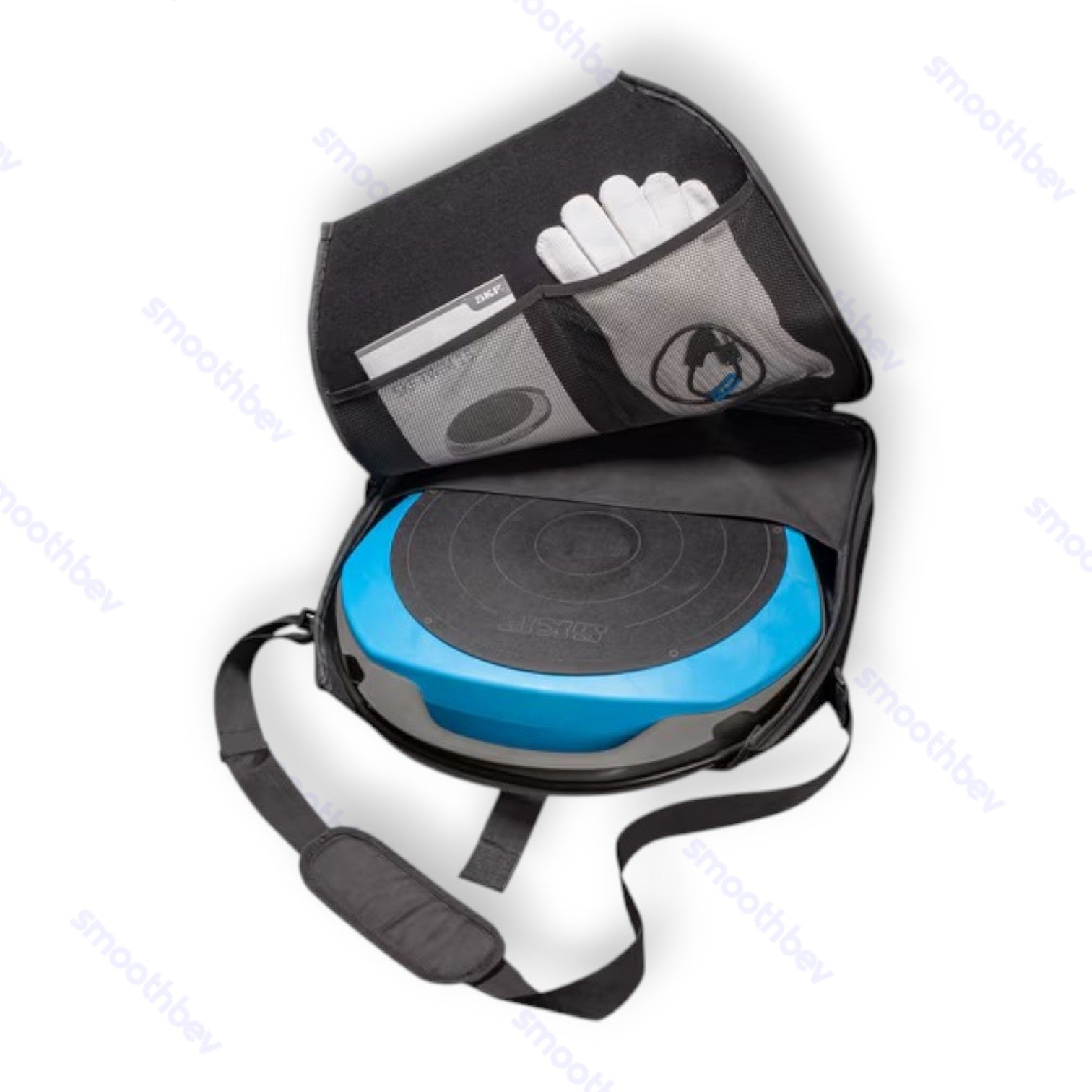

| Content | Heater, Temperature probe (TWIM 15-3), 1 pair of heat resistant gloves (TMBA G11) and 1 shucko mains plug |
